KVS Expansion Joint

Ingersoll Rand KVS Engine Exhaust Manifold to Turbo Expansion Joint

At Bellows Systems, we take pride in designing and manufacturing high-quality metal bellows and expansion joints for a wide range of industries. Our exhaust service rated expansion joint designs for OEMs and OEM direct replacement have been in service for over 40 years.

KVS expansion joints and assembly kits and are specifically designed to be direct replacements for Ingersoll Rand (IR) exhaust expansion joints. These expansion joints are drop-in replacements for OEM part numbers 1R20959B, 1R20959D, and are designed to fit seamlessly into the IR exhaust system.

Bellows Systems manufactures direct replacement for IR exhaust expansion joints, drop in-liner and gaskets for OEM parts numbers,

  • Expansion Joints – 1R20959B,1R20959D
  • Sleeve – 1W40171
  • Gaskets – 1W47349, 1W40030
KVS-expansion-joints

Our premium KVS expansion joints offer dual floating flanges with formed Vanstone’s and significant improvement in bellows cycle life compared to the OEM parts.

In addition to the KVS expansion joints, we also manufactured complete exhaust manifold kits for KVS engines. The drop-in liners and gaskets were made from high temperature corrosion resistant austenitic stainless steels and are designed to provide superior performance and reliability.

At Bellows Systems, we understand the importance of keeping your equipment running reliably, which is why we offer premium replacement parts that are designed to meet or exceed OEM specifications. Our KVS expansion joints are built to last and are an ideal choice for reliable operations.

To learn more about our premium KVS expansion joints and other replacement parts for Ingersoll Rand exhaust systems, visit our Exhaust Bellows page on our website.

If you have any questions or would like to learn more about our products, please don’t hesitate to contact us.

Read More

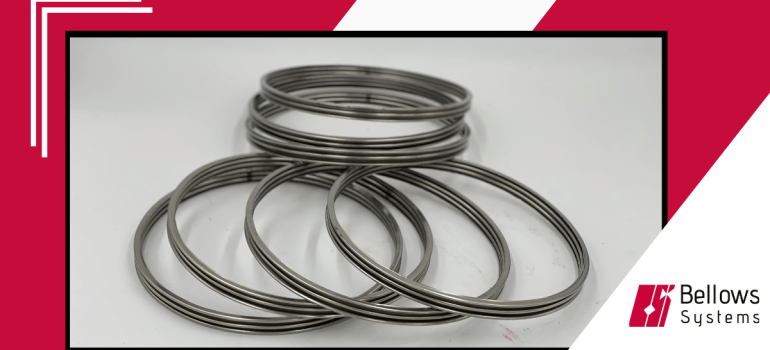

Seal bellows

Bellows Systems Delivers High-Performance Metal Bellows for Aerospace Sealing Application

At Bellows Systems, we take pride in designing and manufacturing high-quality metal bellows and expansion joints for a wide range of industries. Recently, we delivered a batch of metal bellows that were specifically designed for aerospace sealing application.

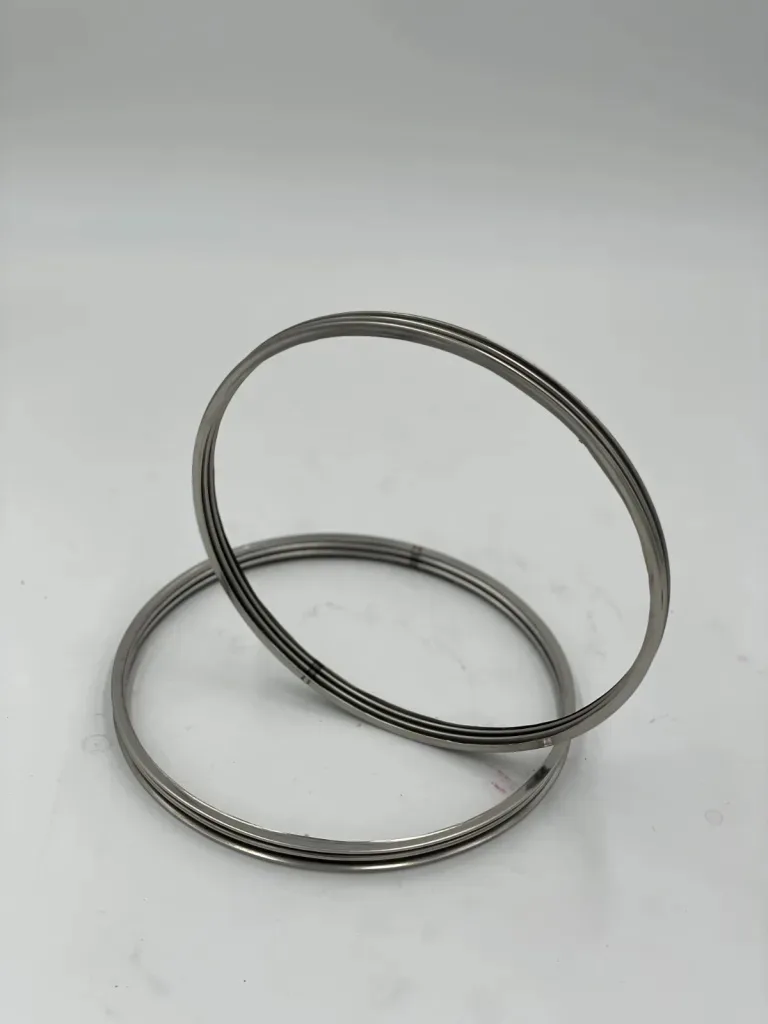

Aerospace Seal Bellows

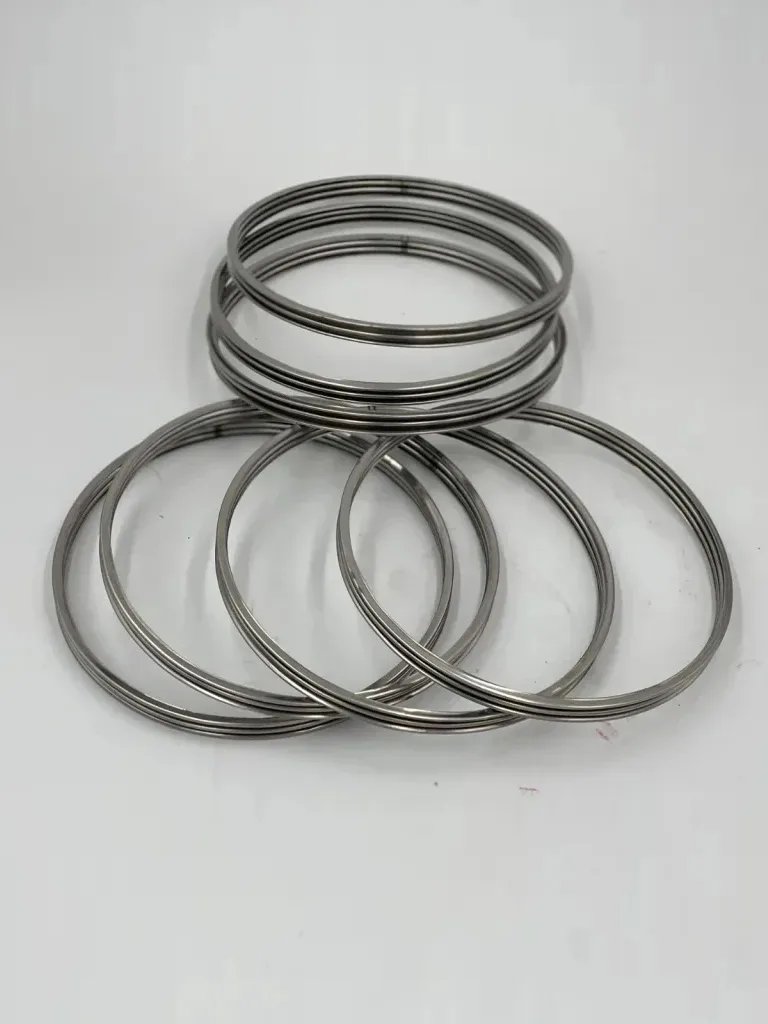

Aerospace Seal Bellows
Aerospace Seal Bellows

Our metal seal bellows are used in both static and dynamic sealing applications, and they are capable of withstanding operating pressures and temperatures that are beyond the capability of standard elastomeric seals. We can manufacture seal bellows in standard round, oval, and rectangular profiles. The standard material of construction can be stainless steelshigh nickel alloyscopper alloystitanium, and other metal alloys depending on the application.

For this project, our design team customized the design of the bellows to meet the specific needs of the space industry customer. We considered key factors such as the seal bellows spring rate, overall stiffness, and high-temperature resistance to ensure that our metal bellows would perform optimally in the challenging environment of aerospace sealing applications.

Our metal seal bellows are designed to provide superior performance and reliability under challenging service conditions ranging full vacuum and cryogenic temperatures to high pressure and temperatures.

 At Bellows Systems, we are committed to delivering high-quality metal bellows and expansion joints that meet the needs of our customers. Whether you need standard or customized solutions, our team of bellows and expansion joint experts are ready to work with you to design and manufacture the perfect product for your application.

If you have any questions or would like to learn more about our metal bellows and expansion joints, please don’t hesitate to contact us.

We look forward to hearing from you!

Read More

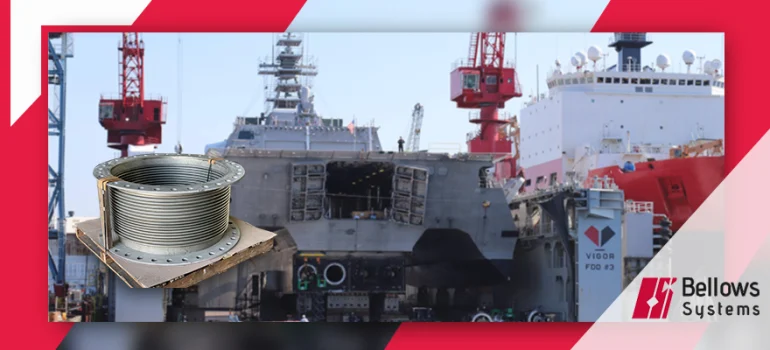

Marine Exhaust Expansion Joint

Marine Exhaust Expansion Joint

All stainless steel metal Expansion Joint for Naval Vessels Main Propulsion Diesel Engine (MPDE). Bellows Systems originally designed and supplied the 36” expansion joints in 2007. The expansion joints have a 2 ply 321 stainless steel bellows element rated for 5000 cycles.

To learn more about our products for marine and shipping industry visit, Marine expansion joints

Or visit, Exhaust system for engines

Read More
36 Inch custom Pressure balanced expansion joint

Bellows Systems designs and delivers a 36 Inch Custom Pressure balanced expansion joint to a major aerospace engine manufacturer.

Bellows Systems Inc, recently shipped a 36 Inch custom Pressure balanced expansion joint to a major aerospace engine manufacturer. This pressure-balanced expansion joint will be used in a jet engine test facility in Florida to upgrade existing piping.

36 inch Custom Pressure Balanced Expansion Joint

The project was delivered within 10 weeks from design concept to delivery. As per the client’s requirement, we used Stainless Steel 304 Grade to build this 36-inch x 120-inch Expansion Joint.

A Pressure Balanced Expansion Joint (Elbow type) is normally a double bellows Expansion Joint with a side outlet between the bellows. The ends of the bellows are tied together so that as one bellows compresses due to axial movement, the opposing bellows open an equivalent amount.

Bellows Systems Inc designs and manufactures metal bellows, expansion joints, exhaust systems, and associated products. Our products are used in diverse industries such as Oil and Gas Transmission, Petrochemical plants and Refineries, Power Generation, Automotive, Aerospace and Defense, and many more.
